Waygate Technologies CRxVision CR Scanner

Versatile Computed Radiography (CR) tabletop Scanner

CRxVision is a high-resolution weld inspection and all-purpose computed radiography scanner from Waygate Technologies. The scanner is developed to cover the stringent ISO 17636-2 Class A and B requirements, as well as ASTM, ASME and EN weld standards. Because of its versatility, it can also be used for many other applications across the NDT industry.

Add to quote

Description

Packed with innovative features to increase throughput, extend plate life and provide excellent image quality, the CRxVision is designed specifically for the inspection of welds. Because of its versatility, it can also be used for many other applications across the NDT industry.

A new innovative imaging plate design now provides the CRxVision imaging plates with more flexibility. This new design allows each imaging plate the ability to return to a flat state after being constantly bent around pipes for the inspection of welds. This feature also helps improve productivity by allowing the imaging plates to be easily extracted and reinserted into cassettes.

Benefits

Compliant to ISO 17636-2 Class A and B, ASME, ASTM and EN weld inspection standards
The CRxVision has an extremely wide latitude eliminating the need for multiple gain settings
Exposure times for welds are equal or better than existing film exposure times
The scanner allows multiple imaging plates to be scanned simultaneously
Imaging plates can be exposed in any type of cassette, then simply removed and inserted directly into the scanner
A new innovative imaging plate design now provides the CRxVision imaging plates with more flexibility

Features

Flexible accepting a wide range of sizes, shapes and classes of imaging plates
Intuitive no gain setting or photomultiplier adjustments required when exposing various thicknesses
Fast multiple plate scanning option: side-by-side and back-to-back with a flat transport path
High Resolution new laser optics for profound reading and higher data extraction
Extended Plate Life no mechanical handling of the imaging plate during scanning and erasing
ASTM DICONDE Compliant fully compatible with Waygate Technologies existing Rhythm Software Platform
Ambient Operation cover protects the imaging plate from light exposure
Direct Laser Contact the laser beam is in direct contact with the imaging plate (no glass to obscure data collection)

Applications

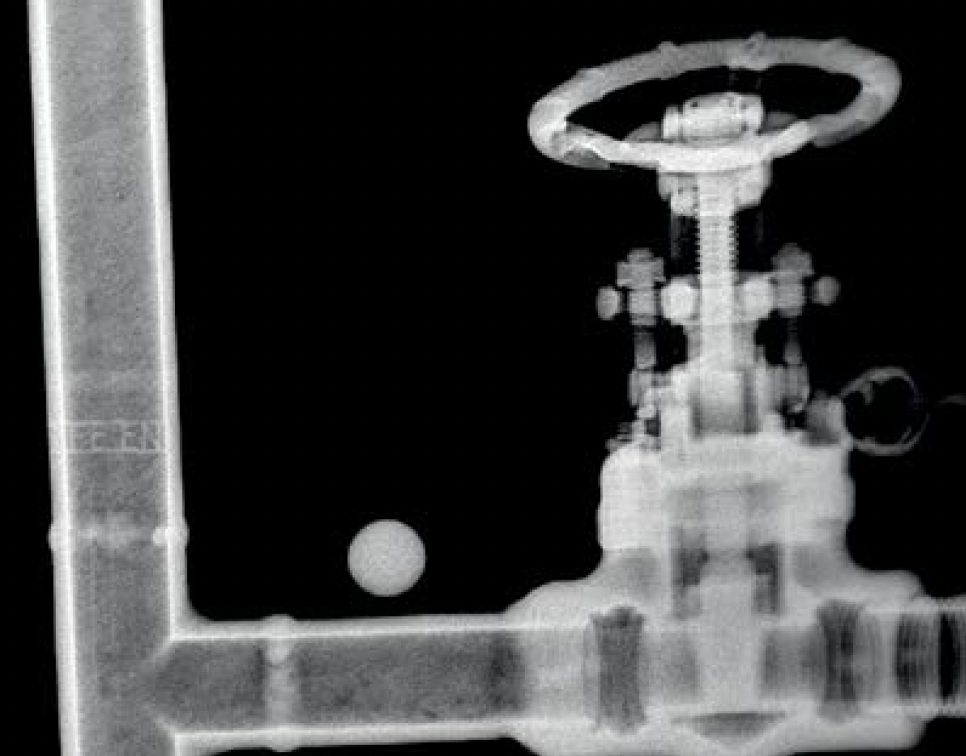

Even though the CRxVision was designed for the inspection of welds, it also has the ability to cover a wide range of industrial radiography applications, from Oil & Gas to Aerospace, and from Power Generation to General NDT.
