Description

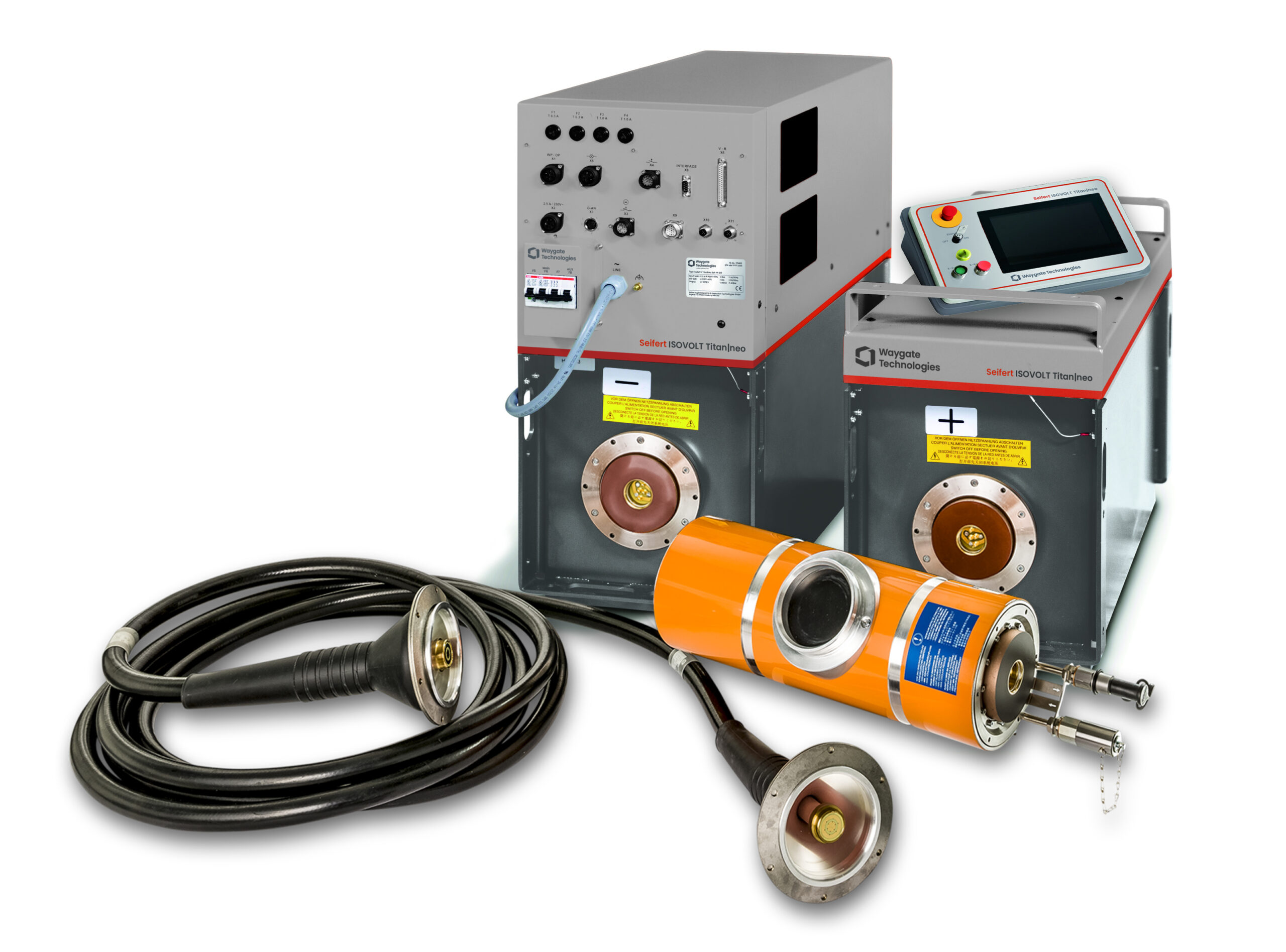

Waygate Technologies’ X-ray tube portfolio covers most industrial applications. In combination with Seifert ISOVOLT generators and high voltage cables, you can benefit from Waygate Technologies’ solutions for radiographic and radioscopic inspections. The Seifert ISOVOLT portfolio also offers solutions for radiometric applications and dosimetry.
Benefits
-
- Constant performance and high, stable radiation for optimized exposures.
- In combination with the Titan|neo fast inspection due to more than 50% shorter exposure time (current range of up to 45 mA), improved image contrast, high penetration performance, longer lifetime
Features
-
- Robust design of X-ray tube heads
- Various designs, including high power/performance, panoramic and small focal spots
- Extensive accessories, including tripods and mobile racks to facilitate positioning during exposure setup
Models
Directional Exposure
Maximum tube voltage/amount of focal spots/maximum anode dissipation/focal spot size
-
- 100 kV 1 focal spot 1,500 W / 3 mm
- 160 kV 1 focal spot 320 W / <0.5 mm
- 160 kV 2 focal spots 640 W / 1 mm each
- 160 kV 2 focal spots 1,000 W / 1 mm each
- 160 kV 2 focal spots 800 W / 0.4 mm & 1,800 W / 1 mm
- 160 kV 2 focal spots 640 W / 1 mm & 1,600 W / 3 mm
- 160 kV 2 focal spots 640 W / 1 mm & 3,000 W / 5.5 mm
- 225 kV 1 focal spot 320 W / <0.5 mm
- 225 kV 2 focal spots 640 W / 1 mm each
- 225 kV 2 focal spots 800 W / 0.4 mm & 1,800 W / 1 mm
- 225 kV 2 focal spots 640 W / 1 mm & 1,600 W / 3 mm
- 225 kV 2 focal spots 640 W / 1 mm & 3,000 W / 5.5 mm
- 320 kV 2 focal spots 800 W / 0.4 mm & 1,800 W / 1 mm
- 320 kV 2 focal spots 640 W / 1.9 mm & 1,600 W / 3.6 mm
- 320 kV 2 focal spots 1,500 W / 3 mm & 4,200 W / 5.5 mm
- 450 kV 2 focal spots 700 W / 0.4 mm & 1,500 W / 1 mm
- 450 kV 2 focal spots 900 W / 2.5 mm & 4,500 W / 5.5 mm
Panoramic Exposure
Maximum tube voltage/maximum anode dissipation/focal spot size
-
- 160 kV / 1,000 W / 4 mm x 4.0 mm
